Portable Foam Equipment

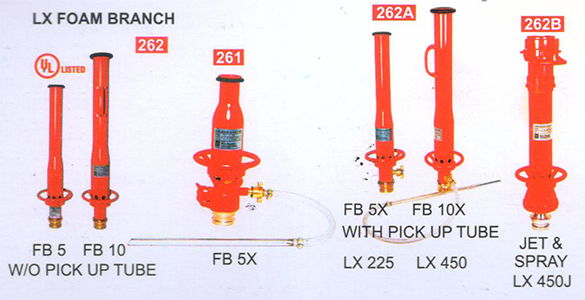

LX FOAM BRANCH :
| MOC | a) Barrel : Aluminium / SS 304 |
| b) Nozzle Assly : Aluminium / Gun Metal | |
| c) Handle : Aluminium / SS 304 (LX 450 Only) | |
| d) Holding Ring : Aluminium | |
| Inlet | 63mm Instantaneous Male (GM / SS / Aluminium) |
| Finish | Single Red Paint / Natural Finish for SS |
Technical Performance Data :
| Data / Model | AAAG LX 225 | AAAG LX 450 | AAAG LX 450J |
| Nominal Flow (IPM)* | 225 | 450 | 450 |
| Range (Mtrs.)* | 20 | 25 | Jet -21 ,Spray -12 |
| Expansion** | 1:10 | 1:10 | 1:10 |
| Length (mm) | 770 | 915 | 850 |
| Approx Wt. (Alu.) (S.S) | 3.5 5.0 | 5.2 6.0 | 6.2 --- |
| *- at 7 kg/cm2 pressure at branch Inlet. **-using standard AFFF Compount | |||

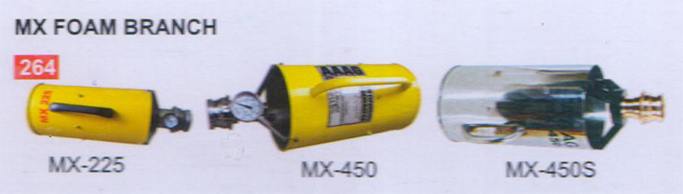

MX FOAM BRANCH :
| MOC | a) Barrel : SS 304 |
| b) Nozzle Assly : Gun Metal | |
| c) Nozzle Worm : Aluminium / Gum Metal | |
| d) Mesh : SS 304 | |
| Inlet | 63mm Instantaneous Male (GM / SS) |
| Finish | Single Red Paint / Natural Finish for SS |
Technical / Performance Data :
| Data / Model | AAAG MX 225 | AAAG MX 450 |
| Nominal Flow (IPM)* | 225 | 450 |
| Range (Mtrs.)* | 06 | 08 |
| Expansion** | 1:40 | 1:40 |
| Length (mm) | 530 | 615 |
| Approx Wt. | 5.0 | 6.2 |
| *- at 4 kg/cm2 pressure at branch Inlet. **-using standard AFFF Compount | ||

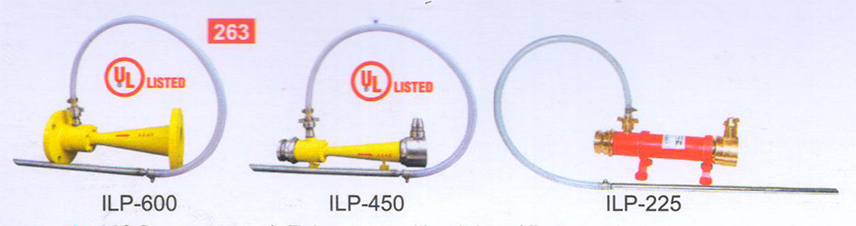

INLINE INDUCTOR :
| MOC | a) Tube : Alluminium / Brass |
| b) Body : Aluminium / Gun Metal | |
| c) Nozzle : Gun Metal | |
| d) Improver : Aluminium / SS 304 | |
| Inlet | 63mm Instantaneous Male / Female (GM / Aluminium) |
| Finish | Single Red Paint / Natural Finish for G.M. |
| Data / Model | AAAG ILP 225 | AAAG ILP 450 |
| Nominal Flow (IPM)* | 225 | 450 |
| Recommended operating Pressure (bars) | 5-10 | 5-10 |
| Length (mm) | 435 | 435 |
| Approx Wt. (Alu.) (Brass) | 5.4 --- | 5.4 9.0 |
| *- at 7 kg/cm2 pressure at inductor Inlet. | ||

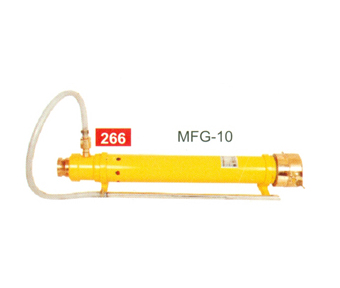

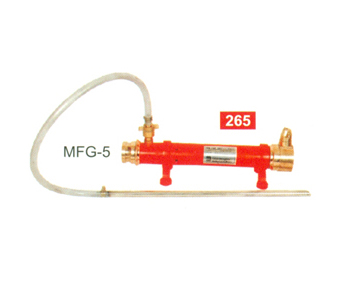

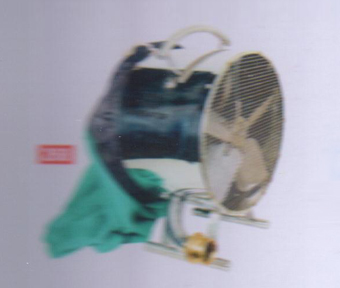

LX FOAM GENERATOR :
| MOC | a) Tube : Alluminium |
| b) Body : Aluminium | |
| c) Inductor Assly : Gun Metal | |
| d) Supports : Aluminium | |
| Inlet | Standard 63mm Instantaneous Male (GM) |
| (MFG5) 63mm Instantaneous Female (GM) | |
| (MFG10) 100mm Instantaneous Female (GM) | |
| Finish | Single Red Superior Paint |
Technical / Performane Data :
| Data / Model | AAAG MFG 225 | AAAG MFG 450 |
| Nominal Flow (IPM) | 225-250 | 450-500 |
| Recommended operating Pressure (bars) | 7-10 | 7-10 |
| Length (mm) | 535 | 885 |
| Approx Wt. | 5.8 | s10.5 |
| *- at 7 kg/cm2 pressure Inlet. | ||
Note : AAAG MFGs are supplied with 1 MTr. Long PVC braided hose and SS dip tube.
